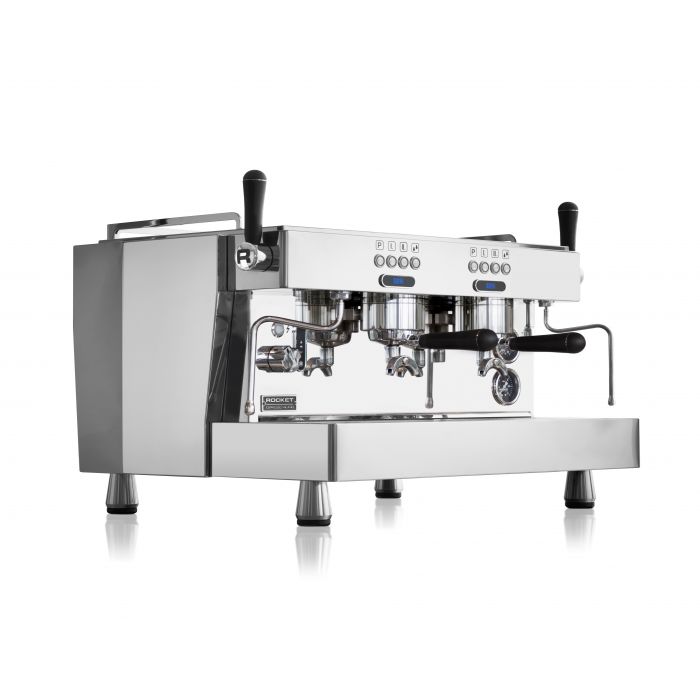

Product Overview
The Rocket Espresso R 9 is a commercial multi-boiler espresso machine designed for high-volume cafés, specialty coffee shops, roasteries, and professional coffee programs. Its multi-boiler architecture provides an independent coffee boiler for each brewing group, paired with a dedicated service boiler for steam production.
With saturated group heads, electronic PID temperature control, programmable volumetric dosing, digital shot timers, and a low-profile commercial design, the R 9 is built to support consistent espresso preparation and efficient barista workflow throughout demanding service periods.
Independent Multi-Boiler Architecture
The R 9 separates brewing and steam functions across dedicated boilers. The 2-group configuration uses two independent 1.9-liter coffee boilers, with each brewing group supplied by its own dedicated boiler. A separate 9.0-liter service boiler provides steam for milk preparation and other commercial beverage applications.
- 2 × 1.9 L Coffee Boilers: Dedicated to individual brewing groups.
- 9.0 L Service Boiler: Provides steam capacity for commercial service.
- Independent Temperature Management: Each coffee boiler can be controlled separately.
Saturated Group Head Design
Each brewing group features a commercial saturated group configuration designed to support consistent brewing temperatures. The group architecture works directly with its dedicated coffee boiler to provide a stable supply of heated water during repeated extractions.
0.1°C PID Temperature Control
The R 9 provides electronic PID temperature adjustment through dedicated digital interfaces positioned above the brewing groups. Temperature settings can be adjusted in 0.1°C increments, giving operators precise control over brewing parameters.
Integrated digital shot timers also provide extraction-time information directly at each group, helping baristas monitor and repeat espresso recipes during service.
Advanced Steam Pressure Management
The 9.0-liter service boiler is supported by an electronic pressure transducer system designed to monitor and regulate steam pressure. This provides responsive steam management for commercial milk steaming and beverage preparation.
Low-Profile Commercial Design
The R 9 features a low-profile chassis measuring approximately 497 mm in height. Its lower design provides baristas with a more open view across the counter while maintaining the internal capacity required for professional coffee service.
Programmable Volumetric Dosing
Each group includes programmable volumetric controls that allow operators to configure automatic water portions for espresso preparation. Once programmed, the machine can automatically stop an extraction at the selected volume, helping streamline workflow during busy service.
Ergonomic Steam Controls
The R 9 features lever-operated steam controls designed for quick and convenient activation. Insulated stainless steel steam wands provide steam for milk preparation while helping reduce heat transfer to the exterior surface of the wand.
Commercial Italian Stainless Steel Construction
The machine features a heavy-duty AISI 304 stainless steel exterior over a rigid structural frame. Its polished finish provides a professional appearance suitable for cafés, specialty coffee bars, and commercial hospitality environments.
Specifications
- Brand: Rocket Espresso Milano
- Model: R 9
- SKU: ROCKET-R9-2G
- Machine Type: Commercial Multi-Boiler Espresso Machine
- Configuration: 2-Group Model
- Available Configurations: 2-Group, 3-Group, and 4-Group
- Group Head Type: Saturated
- Coffee Boilers: 2 × 1.9 L
- Service Boiler: 9.0 L
- Boiler Material: Insulated Stainless Steel
- Temperature Control: Electronic PID
- Temperature Adjustment: 0.1°C Increments
- Steam Pressure Control: Electronic Pressure Transducer
- Dosing System: Programmable Volumetric Dosing
- Shot Timers: Individual Digital Group Timers
- Steam Controls: Lever-Operated
- Water Supply: Commercial Direct-Plumb Installation
- Power: 5.9 kW
- Chassis: AISI 304 Stainless Steel
- Dimensions: 760 × 590 × 497 mm (W × D × H)
- Dimensions in Inches: 29.9 × 23.2 × 19.5 in
- Net Weight: Approximately 75 kg (165 lbs.)
- Manufacturing Origin: Milan, Italy
What's Included
- Rocket Espresso R 9 Commercial Multi-Boiler Espresso Machine
- 2 Commercial-Grade Double-Spouted Brass Portafilters
- 1 Commercial-Grade Single-Spouted Brass Portafilter
- Precision Commercial Single and Double Filter Baskets
- 2 Stainless Steel Backflush Blind Basket Discs
- Braided Steel Water Inlet Hose
- Flexible Wastewater Drain Hose Kit
- Official Commercial Operations Manual
